RV HVAC systems are made up of several components. Understanding what each part does can make shopping for replacements, troubleshooting, and checking compatibility much easier. While RV climate control systems may seem complicated at first, learning the basics can help prevent expensive mistakes and make replacing or upgrading components far less confusing. After we have the basics of each component covered, we can go more in depth into other factors that contribute to the functions of different systems.

Verifying compatibility is always an essential step when replacing any component in your RV HVAC system. Replacing one component may require replacing additional parts.

Things to Keep in Mind

• BTUs are only part of the decision
• Thermostats, controllers, and other components may need to match specific system requirements
• Ducted vs non-ducted compatibility matters
• Visually similar or identical components are not always interchangeable

Now that we understand the basics of each component, we can dive a little deeper on each one.

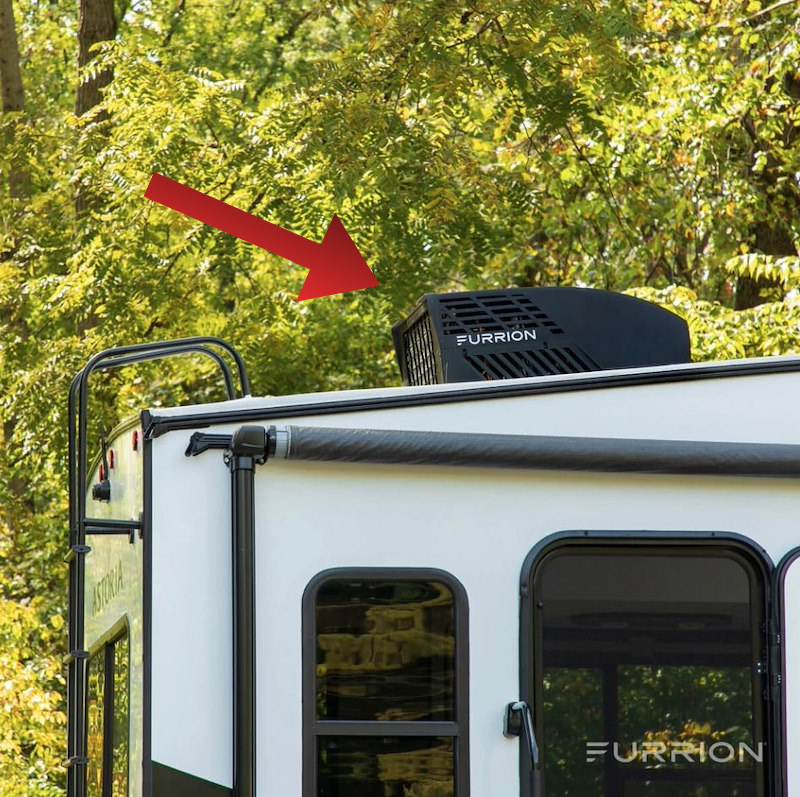

When shopping for a rooftop unit, one of the first specifications you'll encounter is BTU, or British Thermal Unit. In simple terms, BTU measures how much heat an air conditioner can remove from your RV in one hour. Higher BTU ratings generally provide greater cooling capacity, but bigger is not always better.

Choosing too few BTUs can leave your system running continuously while struggling to maintain the set temperature. Choosing too many can cause short cycling, which is when the unit cools quickly and shuts off before properly removing humidity from the air. This can reduce efficiency and make your living space feel damp and uncomfortable.

These ranges are a general starting point. Other factors such as insulation quality, climate, and layout also impact cooling needs.

Another commonly used starting point is 20 BTU per square foot, but real world RV cooling needs often vary more than household spaces.

You may need to upgrade to a system with a higher BTU rating if you notice:

• The AC runs continuously but struggles to maintain the set temperature
• The interior remains warm during peak afternoon heat
• Cooling feels uneven between rooms or zones
• High humidity inside the RV
• Your generator or power system appears strained during operation

These issues do not always mean that you need a larger unit, but it may be worth evaluating if the system is otherwise working properly and / or other issues have been ruled out.

Different systems are designed with different priorities in mind.

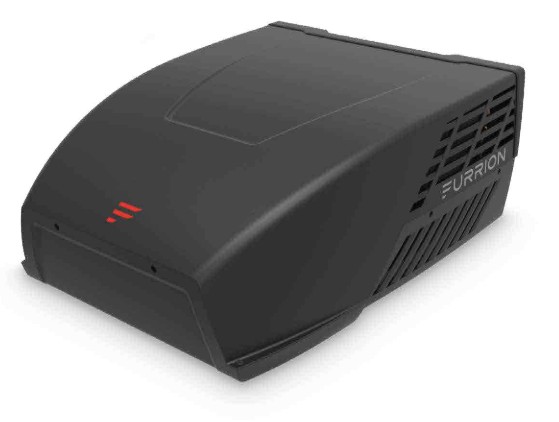

Furrion Chill HE systems are often a practical choice for a mid-sized RV, balancing cooling performance with modern features and efficiency.

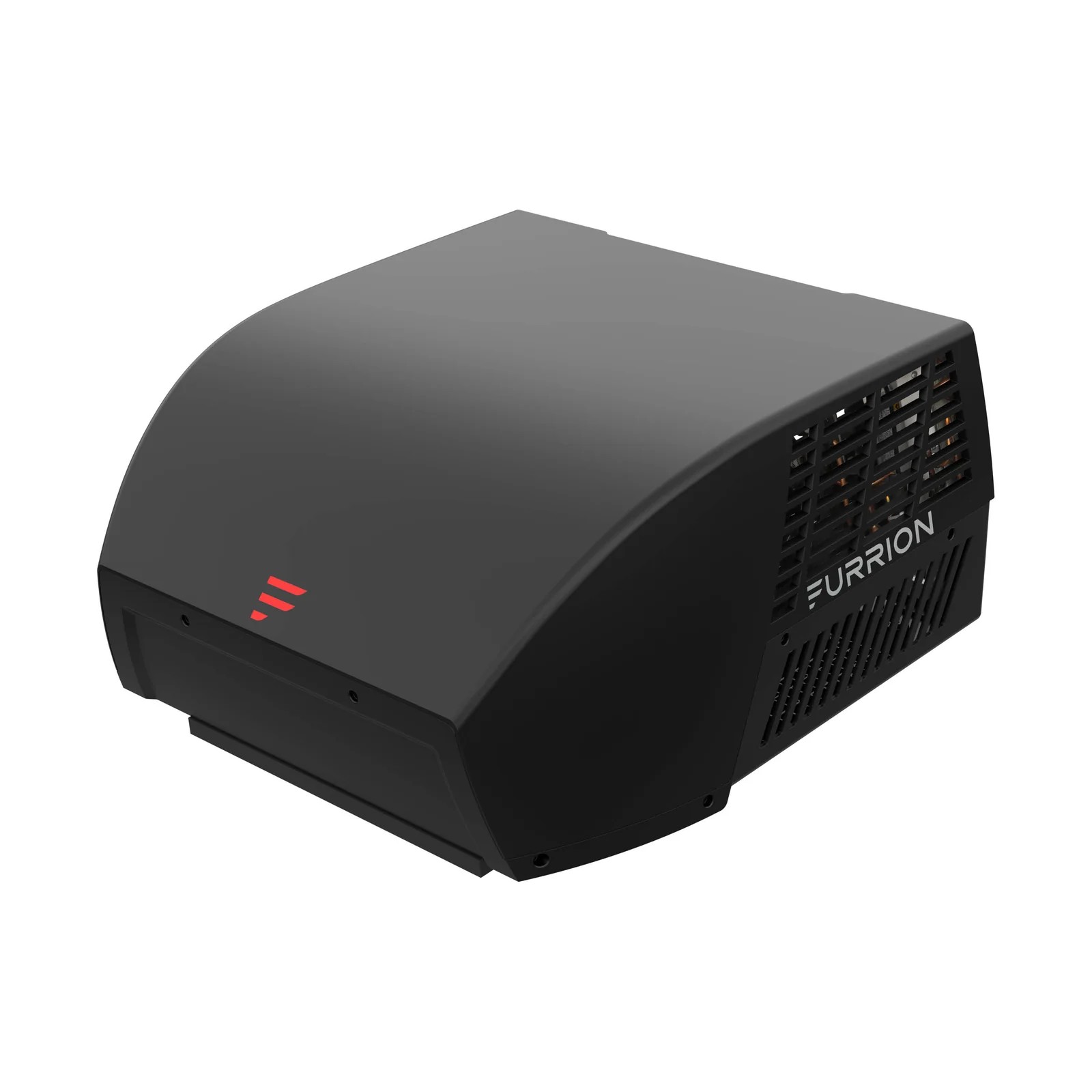

Furrion Chill Cube 18K systems may be more appealing to RV owners dealing with hotter climates, larger interiors, or higher cooling demands. Features such as variable-speed operation can improve efficiency, reduce noise, and provide steadier cooling under a higher load.

The "best" BTU size is not always the highest number. A properly matched system often performs better, uses less power, and provides a more comfortable experience.

Another important factor when replacing or upgrading an RV air conditioner is whether the existing system is ducted or non-ducted. This distinction affects airflow, installation requirements, and compatibility.

A ducted system routes cooled or heated air throughout concealed air ducts and distributes it throughout different areas of the RV. These systems are common in larger travel trailers, fifth wheels, and motorhomes.

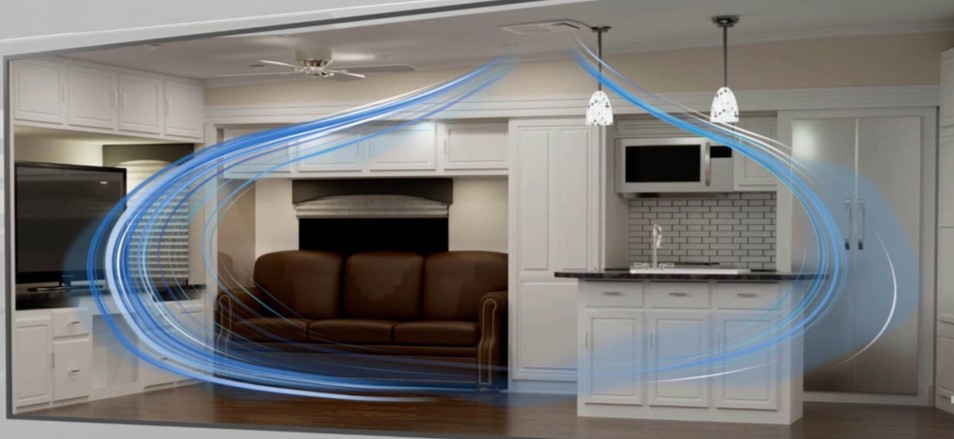

One example of the way air flows through a ducted system

Understanding whether your system is ducted or non-ducted can help prevent compatibility issues when replacing any component of your system. Some components are designed specifically for one setup, and others are meant to be compatible with either.

When shopping for replacement rooftop units, thermostats, ADBs, or entire systems, you will encounter the terms "single zone" and "multi-zone." These terms refer to where air moves inside the cabin. This is different from ducted vs non-ducted systems, which refer to how air moves.

For example:

• Ducted vs non-ducted: How does cooled or heated air travel?
• Single zone vs multi-zone: How many areas can be controlled independently?

A ducted RV can be either single zone or multi-zone, while non-ducted systems are generally considered single zone.

Example Scenarios

• Ducted + single zone: Air moves through ceiling ducts to multiple vents, but the thermostat controls the entire RV at one set temperaure.
• Ducted + multi-zone: Air moves through ceiling ducts, and separate areas can maintain different temperatures.

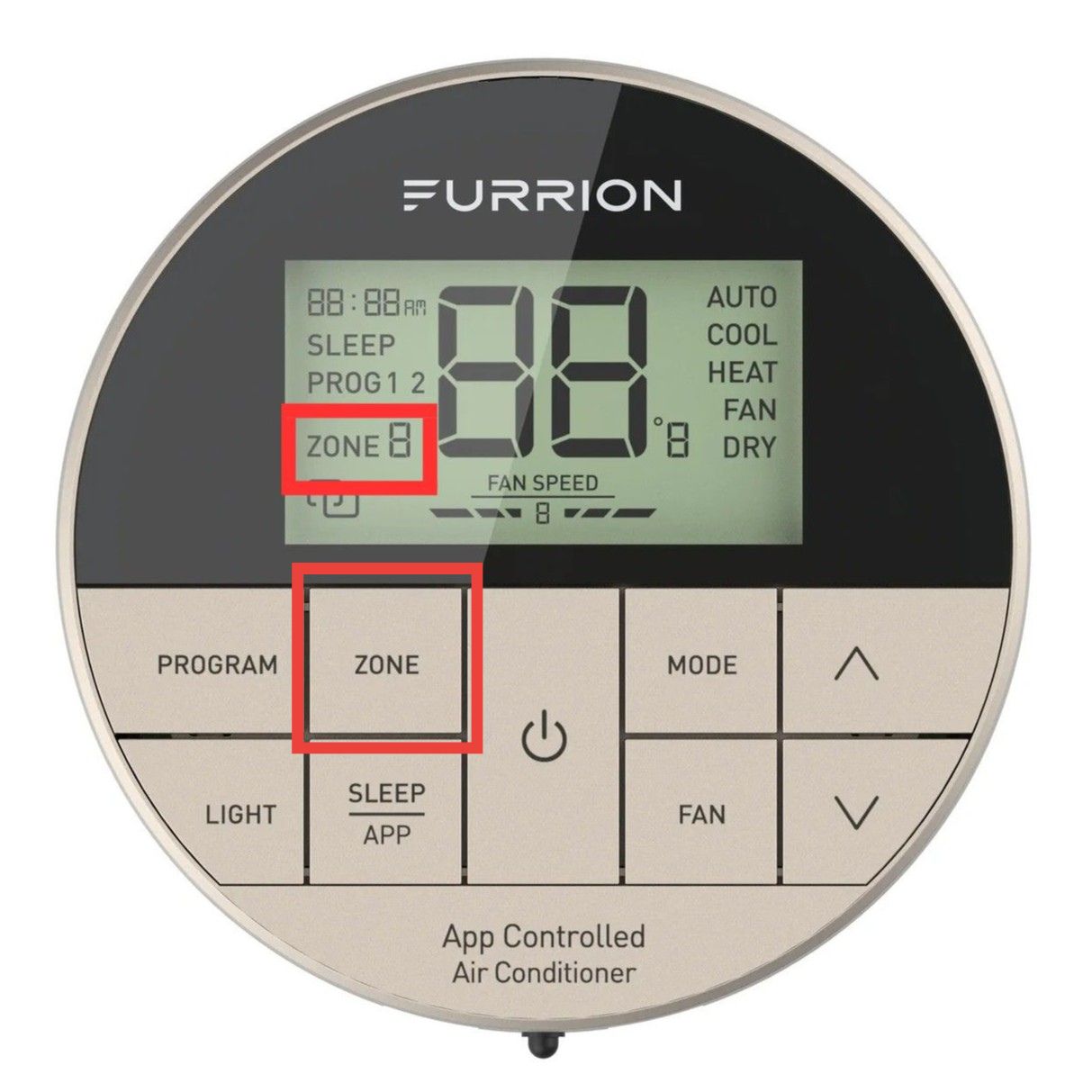

Your system is multi-zone if:

• The thermostat displays multiple zones
• Different areas can be controlled independently

Your system is single zone if:

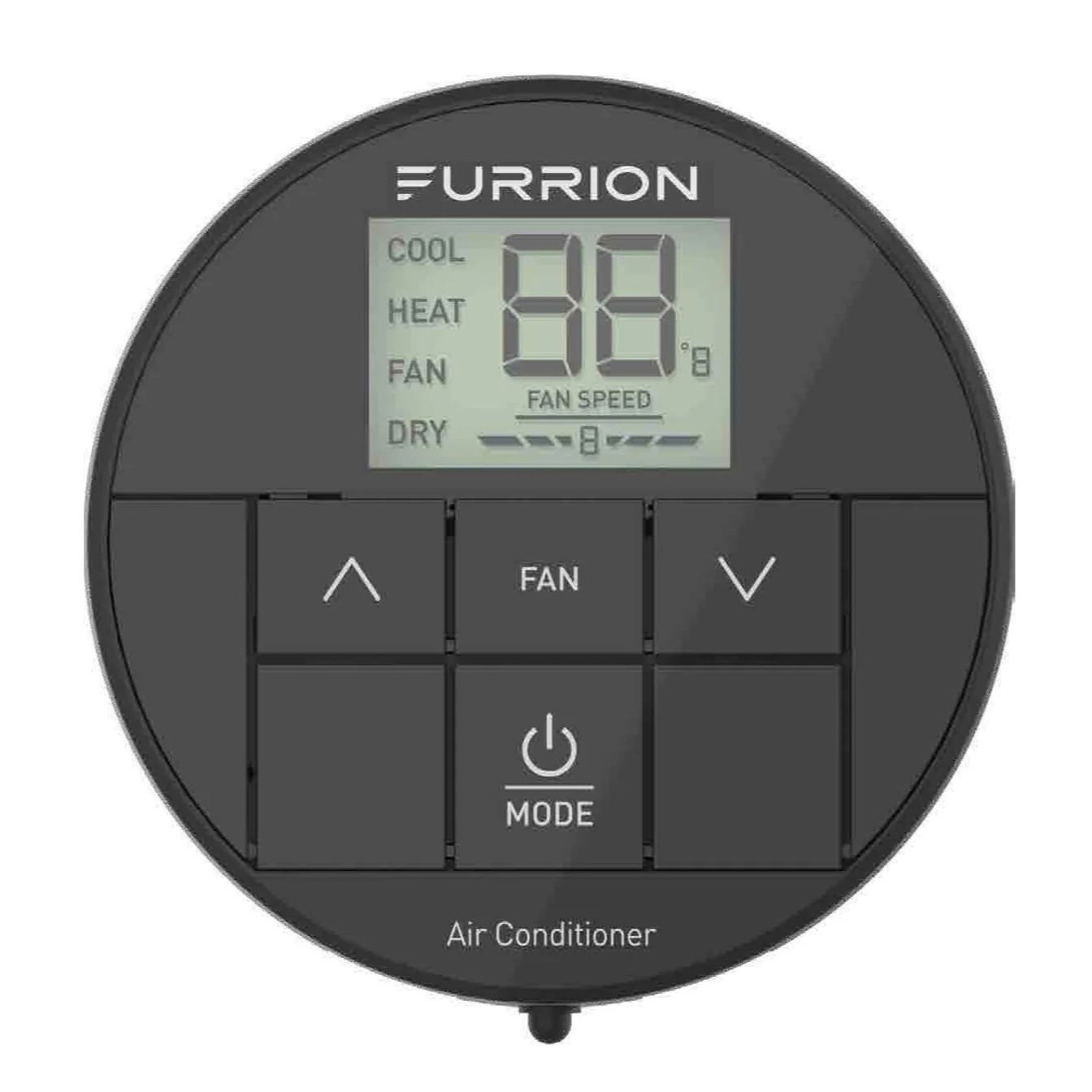

• The thermostat only displays one temperature zone for the entire RV
• Temperature settings apply everywhere equally

Thermostats, control boxes, and other components are not always interchangeable between zone configurations. Some units support either single zone or multi-zone only, and others can be used in either.

Single zone and multi-zone systems are designed around comfort needs rather than cooling power. Understanding which setup your RV uses makes compatibility checks much easier when replacing any component in your system.

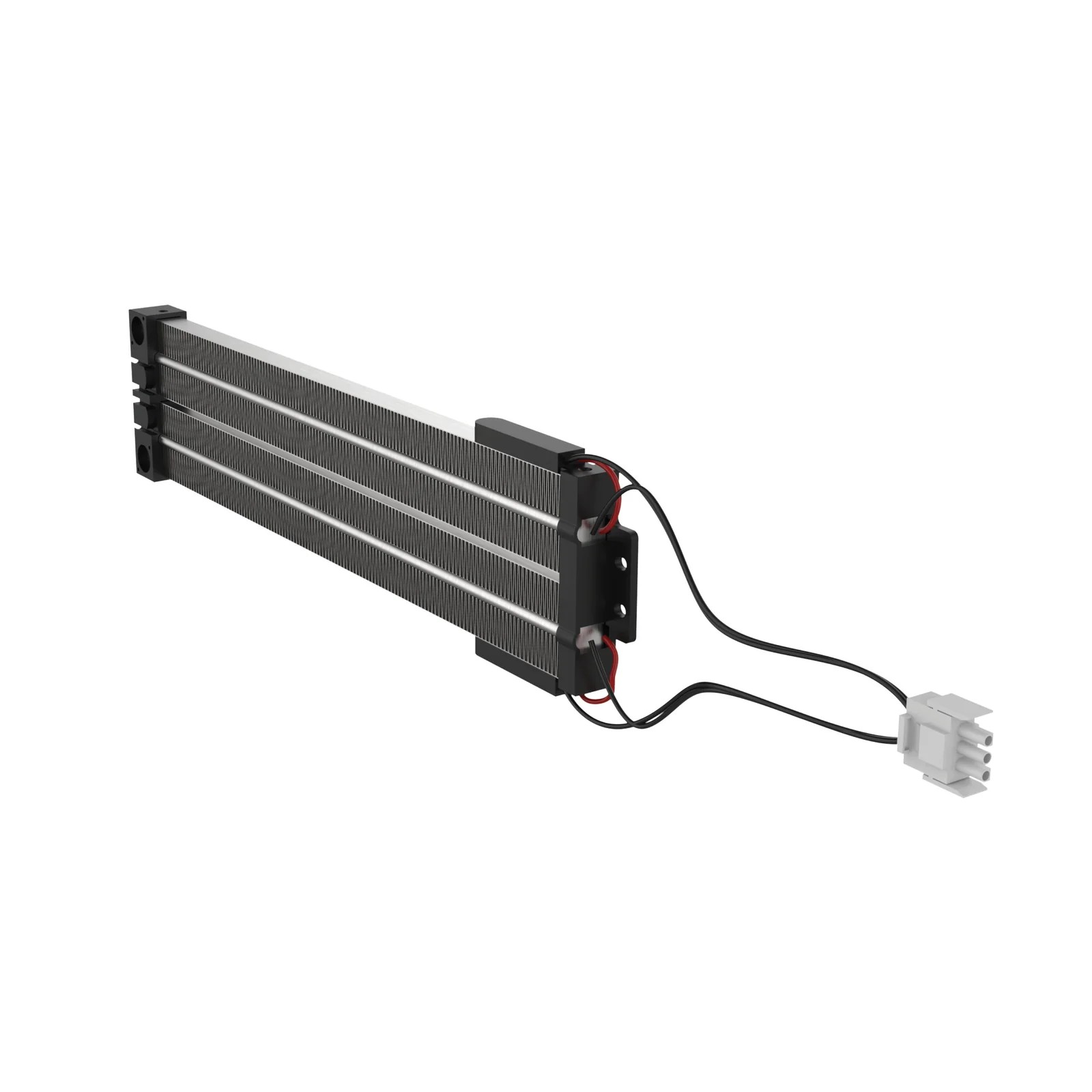

Many RV HVAC systems can provide more than just cooling alone. Depending on the setup, some systems offer heat pump functionality or support optional heat strips to provide supplemental heating during cooler temperatures.

While both can help reduce propane usage, they are not meant to completely replace a furnace in colder climates.

In many cases, yes.

Because both systems use electricity rather than propane, they may help reduce furnace usage during cooler weather. When staying at campgrounds where electricity is included, using a heat pump or heat strip when conditions allow may lower propane consumption and reduce heating costs.

Actual savings willl vary depending on outdoor temperatures, campground power availability, and how much heating is needed.

It is important to remember that neither can completely replace a furnace during intense or prolonged cold weather or freezing temperatures.

Final Thoughts

Heat pumps and heat strips can be a useful cost saving addition for RV owners looking to extend comfort while reducing propane usage as the weather is changing. Understanding the difference between the two can help when choosing a new rooftop unit or deciding whether additional heating options are worth adding to an existing system.

One of the most common misconceptions about RV HVAC systems is that certain (or all) components are universally interchangeable. In reality, many components need to work within specific system requirements.

Replacing one part does not always mean replacing others, but compatibility should be verified before purchasing new components.

Before ordering a replacement part or putting together a whole new system, consider the following:

1. Is my system ducted or non-ducted?

This can affect compatiblity with rooftop units, ceiling assemblies, control boxes, and thermostats.

2. Is my system single or multi-zone?

Some thermostats, ceiling assemblies, and control boxes only support specific zone configurations.

Check:

• Existing thermostat settings
• Number of controlled areas
• Current control box capabilities

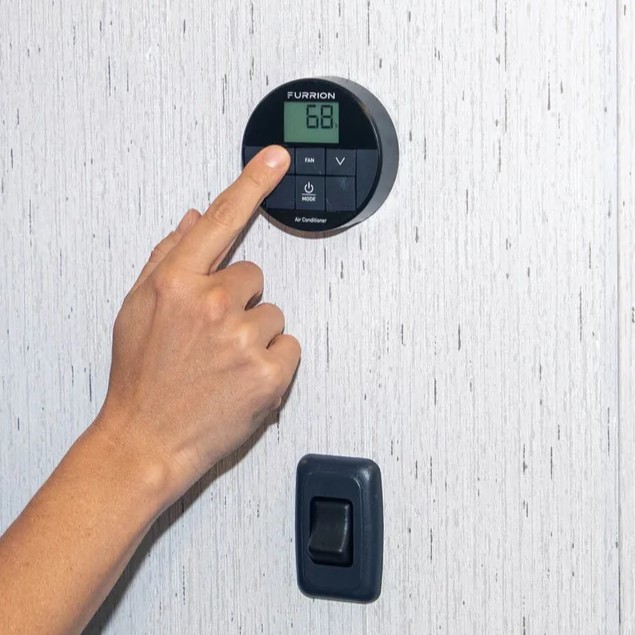

3. Will my existing thermostat work?

Compatibility may depend on:

• Control box
• Rooftop unit generation
• Zone configuration
• Heat functions
• And more

Remember that two visually identical thermostats may support completely different functions.

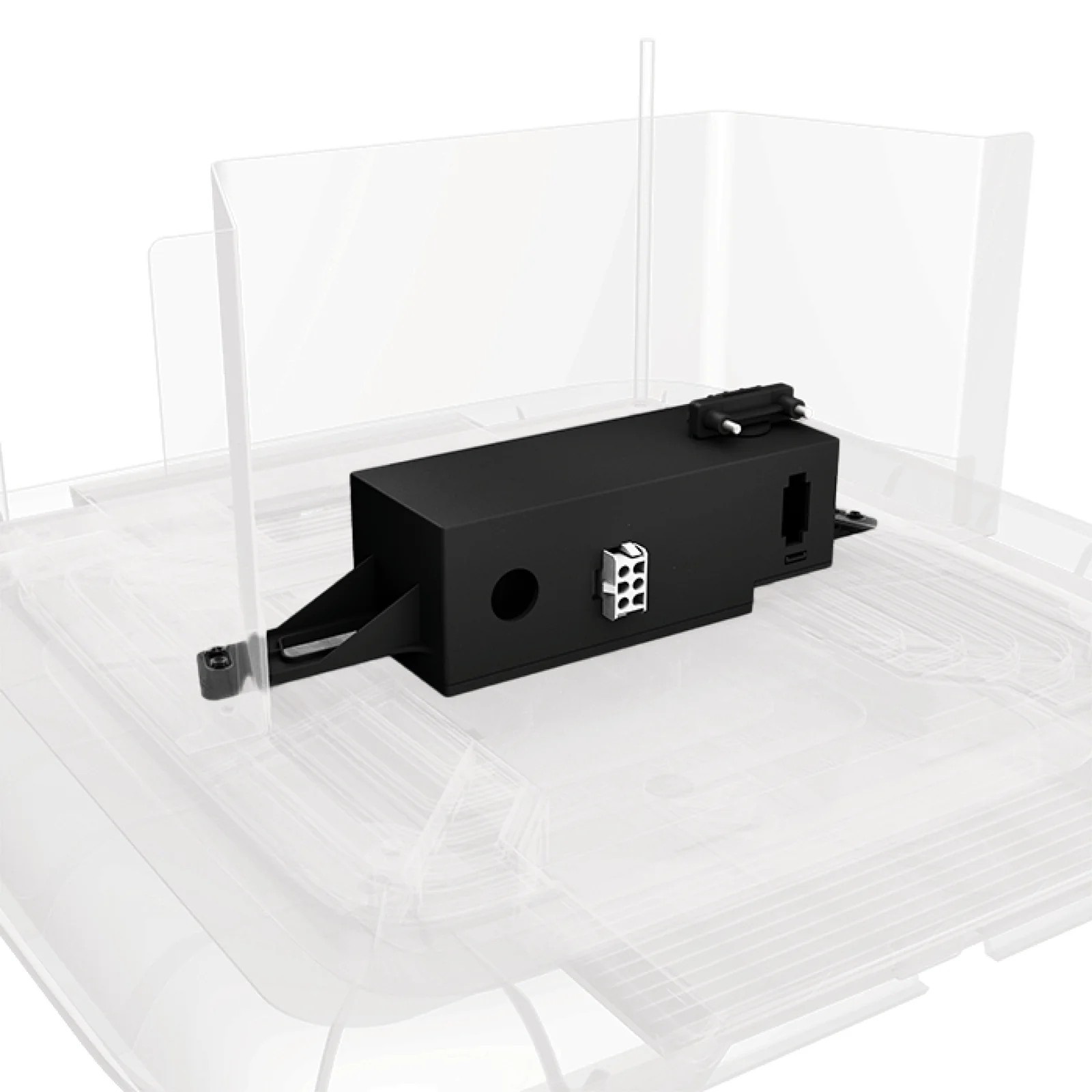

4. Does my system require a control box?

Some rooftop units or ceiling assemblies include integrated control boxes while others require a separate one to be added during installation.

Controllers need to match:

• Thermostat
• Rooftop unit
• Zone setup
• Additional functions (such as heating or other smart features)

5. Do I need to replace more than one component?

Changing one component can sometimes affect others, especially when replacing the rooftop unit.

For example, replacing a rooftop unit may require also replacing:

• Thermostat
• Control box
• Ceiling assembly
• Or other accessories

Not all replacements are direct swaps. This has recently become an even greater point of confusion due to the EPA updates on refrigeration requirements. As of 1/1/2026, systems using R410A refrigerant are no longer allowed to be sold in the US. For more information on R32 vs R410A refrigerants, you can view our blog post here. For more information on how this change has affected the RV HVAC industry, you can read the second half of our other post here.

Cooling capacity is important, but comfort goes beyond the temperature in your RV. Factors such as compressor design, airflow, cycling behavior, and system configuration can all influence noise levels, temperature consistency, and overall comfort. These factors can make a significant difference in comfort, yet they can often be overlooked.

Understanding what affects comfort can help you decide how to prioritize features when comparing systems.

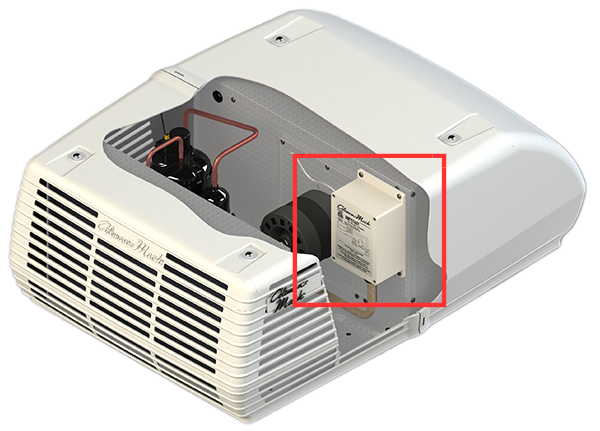

Rooftop units generally require additional power during startup compared to normal operation. Some systems offer soft start technology (either integrated or as an optional add-on device) or other similar features designed to reduce sudden startup demands.

Soft Start Benefits

• Smoother startup
• Reduced electrical strain
• Potential improved generator compatibility
• Less abrupt startup noise

While startup behavior varies by system, reducing sudden power spikes may contribute to a quieter and more comfortable experience.

Comfort is not only determined by temperature. How often a system cycles on and off can also affect humidity, noise, and efficiency.

Short Cycling

Short cycling occurs when an air conditioner repeatedly turns on and off in short intervals.

Potential causes may include oversized cooling capacity (too many BTUs) or system inefficiencies.

Potential effects:

• Uneven temperatures
• Increased humidity
• More noticeable cycling noise
• Additional wear on components

Continuous Operation

In other situations, an air conditioner may run nearly nonstop while struggling to maintain the set temperature.

Possible causes may include:

• Undersized cooling capacity
• Extreme outdoor temperatures
• Poor insulation
• High heat load inside the RV

Continuous operation may indicate that the system is working harder than intended.

A comfortable RV interior often depends on multiple factors, including:

• Stable temperatures
• Consistent airflow
• Lower humidity
• Reduced cycling noise
• Proper cooling capacity for the space

The coldest system is not always the most comfortable one.

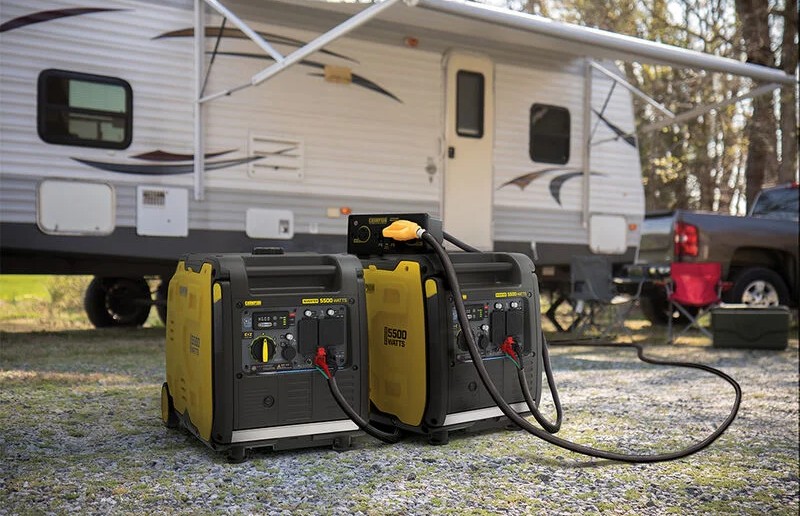

Running an RV HVAC system on a generator involves more than simply matching BTU ratings. Factors such as startup surge, electrical service, compressor design, and total appliance load can all affect whether a system performs reliably.

Understanding a few basic electrical concepts can make it easier to choose a compatible generator and avoid common frustrations.

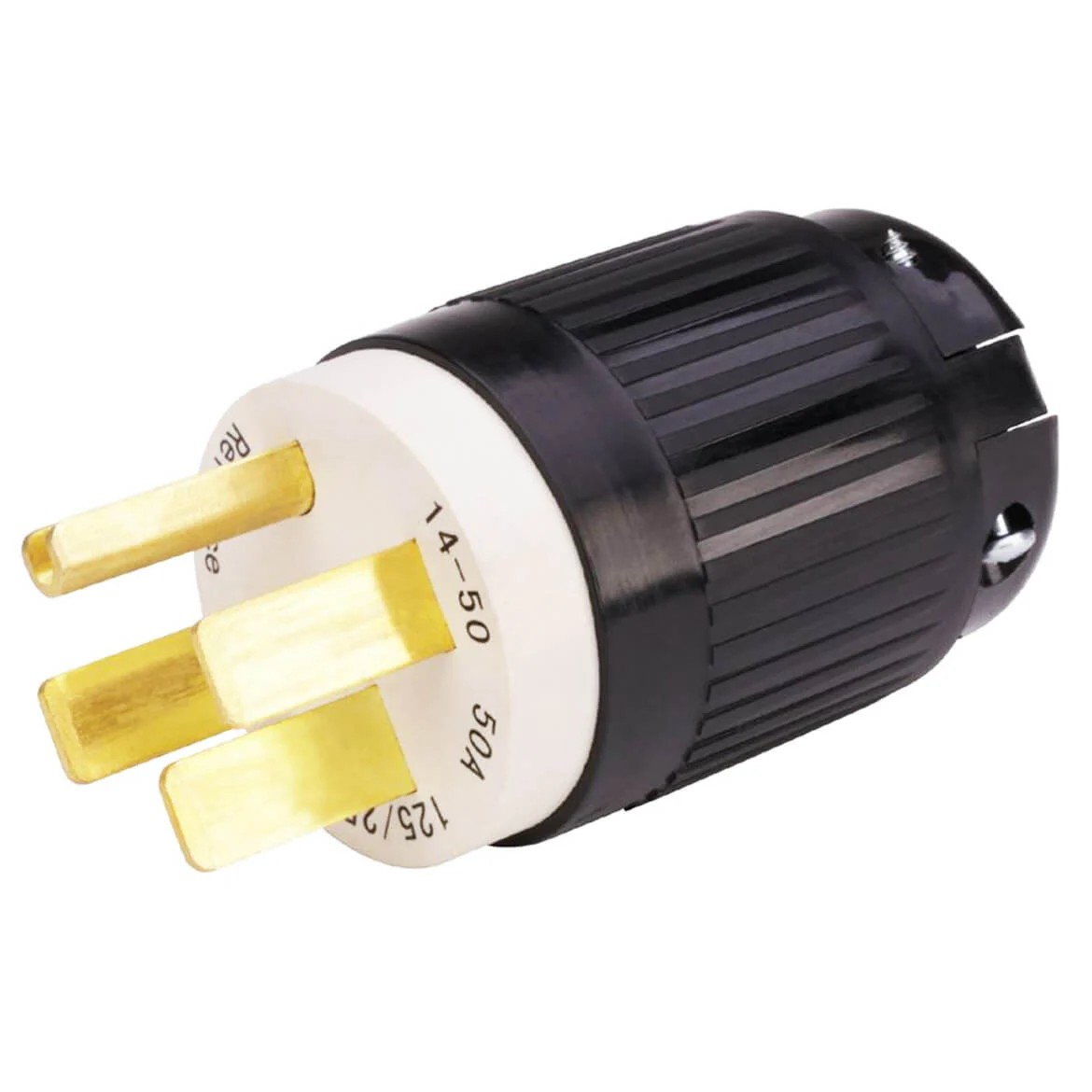

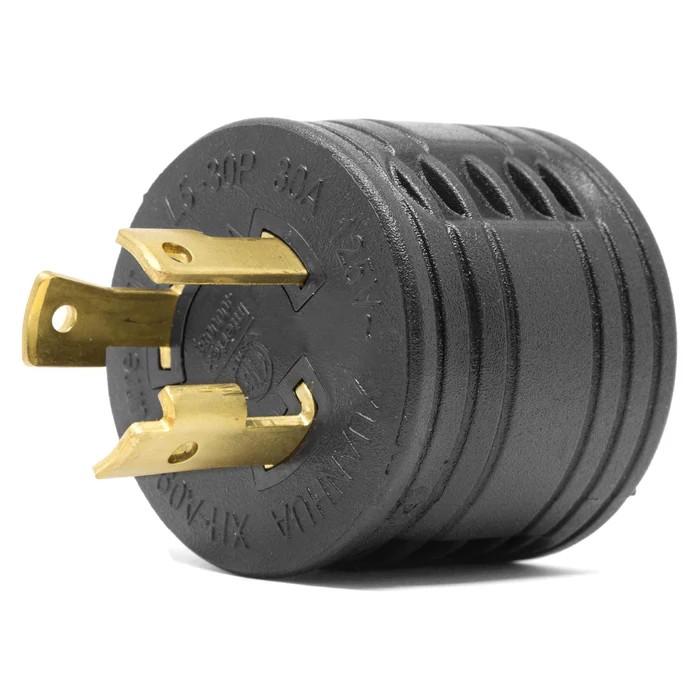

One of the first things to understand is whether your RV uses 30 amp or 50 amp service. This can often be found near the RV power inlet, on electrical labels near the hookup connection, or in the owner's manual.

Quick Comparison

Running wattage does not tell the full story. RV HVAC systems often require significantly more power during startup than during normal operation.

Running watts: The power required during steady operation after the system is already running

Starting watts / surge watts: The brief but much higher power draw required to start the compressor. This startup surge is often what causes tripped breakers or struggling generators.

Fixed Speed Compressors

Traditional fixed speed systems typically start up at full power every time cooling is needed. This repeated on/off cycling can create larger startup surges that may overwhelm generators.

Some fixed speed systems can briefly draw 2-3 times their running wattage during startup.

Variable-Speed / Inverter Style Systems

Variable-speed systems gradually ramp output up or down based on cooling demand rather than repeatedly starting at full power.

Benefits

• Reduced startup intensity
• Improved generator compatibility
• Smoother operation
• Easier on smaller inverter generators

Because startup demand is often lower, generator-powered operation may feel more manageable compared to fixed speed systems.

Power requirements vary by system and operating conditions, but the following is a general example:

Many 13.5K BTU - 15K BTU systems require approximately:

• 1,200 - 1,800 running watts
• 1,500 - 3,000+ startup watts

Actual requirements are affected by compressor design, outdoor temperature, efficiency, and additional connected loads.

In some situations, reducing other electrical loads may help.

Examples include:

• Turning off microwaves
• Turning off electric water heaters
• Avoiding running other high-draw appliances simultaneously
• Allowing the fan to start before heavy cooling demand increases
  • Important Note: Installing non-approved electrical devices or operating HVAC systems outside of manufacturer guidelines or power requirements may void warranties, damage components, or create fire risks. Although alternative methods may be widely used or suggested, it is always best to follow manufacturer recommendations.

Choosing the right generator requires considering the total electrical load inside the RV, not just the air conditioner alone.

Other appliances to keep in mind are:

• Refrigerators
• Battery chargers/converters
• Microwaves
• Electric water heaters
• TVs and other electronics
• Small appliances and outlets

1. Identify AC Running and Startup Wattage

Check product documentation whenever possible.

2. Add Other Essential Loads

Consider which appliances may run at the same time as the AC.

3. Account for Peak Demand

Startup surge and simultaneous appliance usage need to be accounted for.

4. Add a Safety Buffer

Leaving additional capacity can improve reliability and reduce strain. A general recommendation is to maintain approximately 20% extra capacity beyond estimated demand when possible.

Altitude

• Higher elevations reduce engine output due to thinner air

Extreme Heat

• Hot weather increases cooling demand and may reduce generator efficiency

Generator Maintenance

• Dirty filters, old oil, poor fuel quality, or clogged fuel systems can reduce performance and create unstable voltage conditions

RV Insulation & Heat Load

• Poor insulation, large windows, direct sunlight, and frequently opening doors can increase cooling demand significantly

A few simple habits may improve cooling performance while reducing generator strain:

• Pre-cool the RV before peak outdoor temperatures
• Keep doors and windows closed as much as possible
• Use shade, awnings, or reflective window coverings
• Avoid setting the thermostat temperature extremely low
• When possible, reduce simultaneous appliance usage during peak cooling demand

Systems with variable-speed compressors or energy saving (eco) modes may also help maintain comfort with lower generator load and reduced noise.

RV HVAC power requirements can vary significantly depending on compressor design, climate conditions, and overall electrical demand throughout the RV. Understanding concepts such as startup surge, electrical service, and total appliance load can help make generator selection much easier and reduce frustration when operating your RV HVAC system off grid or on limited power sources.

Replacing or upgrading an RV HVAC system can feel overwhelming, especially with changing refrigerants, compatibility requirements, and varying power demands. Many common issues happen not because the equipment is defective, but because important system details were forgotten or overlooked during the buying process.

Being aware of common mistakes ahead of time can help prevent compatibility issues, unnecessary expenses, and frustrating installation surprises.

1. Assuming Components Are Universal

Many RV HVAC components are designed to work only with certain systems, design series, or system generations. It is always best to confirm compatibility when replacing any component.

2. Buying Based on BTU Rating

Higher BTU ratings do not automatically mean better performance or comfort. Oversized systems may short cycle, while undersized units may struggle in peak heat.

3. Overlooking Ducted vs Non-Ducted Compatibility

Some rooftop units, ceiling assemblies, and other components are designed specifically for ducted or non-ducted systems. Ordering the wrong configuration can create installation and airflow problems.

4. Ignoring Single Zone vs Multi-Zone Requirements

Thermostats and controllers may only support certain zone configurations.

5. Forgetting About Startup Requirements

A generator that can handle AC running wattage may still struggle with compressor startup surge. Startup draw is one of the most commonly overlooked electrical considerations.

6. Assuming Existing Thermostats Will Still Work

Replacing a rooftop unit or control box may also require replacing the thermostat, depending on system compatibility and refrigerant type.

7. Underestimating Climate and RV Heat Load

Outdoor temperature, insulation quality, sun exposure, and RV layout can all significantly affect cooling performance. Two RVs of similar size can have very different cooling needs.

8. Choosing Based Only On Price

Lower-cost systems are not always the best long-term fit. Noise levels, compressor design, efficiency, compatibility, and comfort features can make a major difference during daily use. Sometimes a higher initial investment can end up saving you a lot of money down the line.

Different layouts and travel styles often benefit from different HVAC priorities. Factors such as RV size, climate, campground access, generator use, and noise preferences can all influence which system features may be the best fit.

RV owners who consistently camp in hot climates may want to prioritize:

• Higher cooling capacity
• Variable-speed compressor systems
• Improved airflow distribution
• Better humidity control

Heat load from direct sun exposure, large windows, and poor insulation can significantly affect cooling performance.

For full-time RV living or extended trips, comfort related features may become more important.

Some examples include:

• Quieter operation
• Reduced cycling noise
• Multi-zone controls (for ducted systems)
• More stable temperature
• Improved humidity control

Some modern variable-speed systems, such as the Furrion Chill Cube, are designed with quieter operation, generator compatibility, consistent temperatures, and humidity control in mind.

Sometimes, but not always.

Older RV HVAC systems tend to be simpler and more interchangeable, while many modern systems have more differences in communication protocols or feature compatibility. Depending on the system, replacing only the rooftop unit may also require replacing additional components.

Another reason for needing to replace additional components is the switch from R410A to R32 refrigerant. Some R32 units are designed to be backwards compatible with the components used with their older R410A counterparts. Some models got significant upgrades or a complete overhaul, and some have been discontinued completely, resulting in compatibility issues with older components.

Compatibility may depend on factors such as:

• Refrigerant type
• Control box communication style
• Connector type and wiring
• Manufacturer ecosystem or proprietary systems

For many people, yes, especially in mild climates.

Heat pumps can provide supplemental heating while reducing reliance on propane furnaces during colder weather. Because they operate on electricity, they may help lower propane cost while taking advantage of electrical hookups that are included in site fees.

RV owners who frequently camp during spring, fall, or moderate weather often find heat pumps to be especially useful.

Most rooftop units are designed to fit this size of roof opening, as it is the industry standard. Personally, I have yet to encounter a rooftop unit that does not adhere to this standard. However, this does not always mean that all installations are automatically interchangeable.

Even when the roof opening size matches, other factors must still be considered, including:

• Roof thickness requirements
• Ducted vs non-ducted configuration

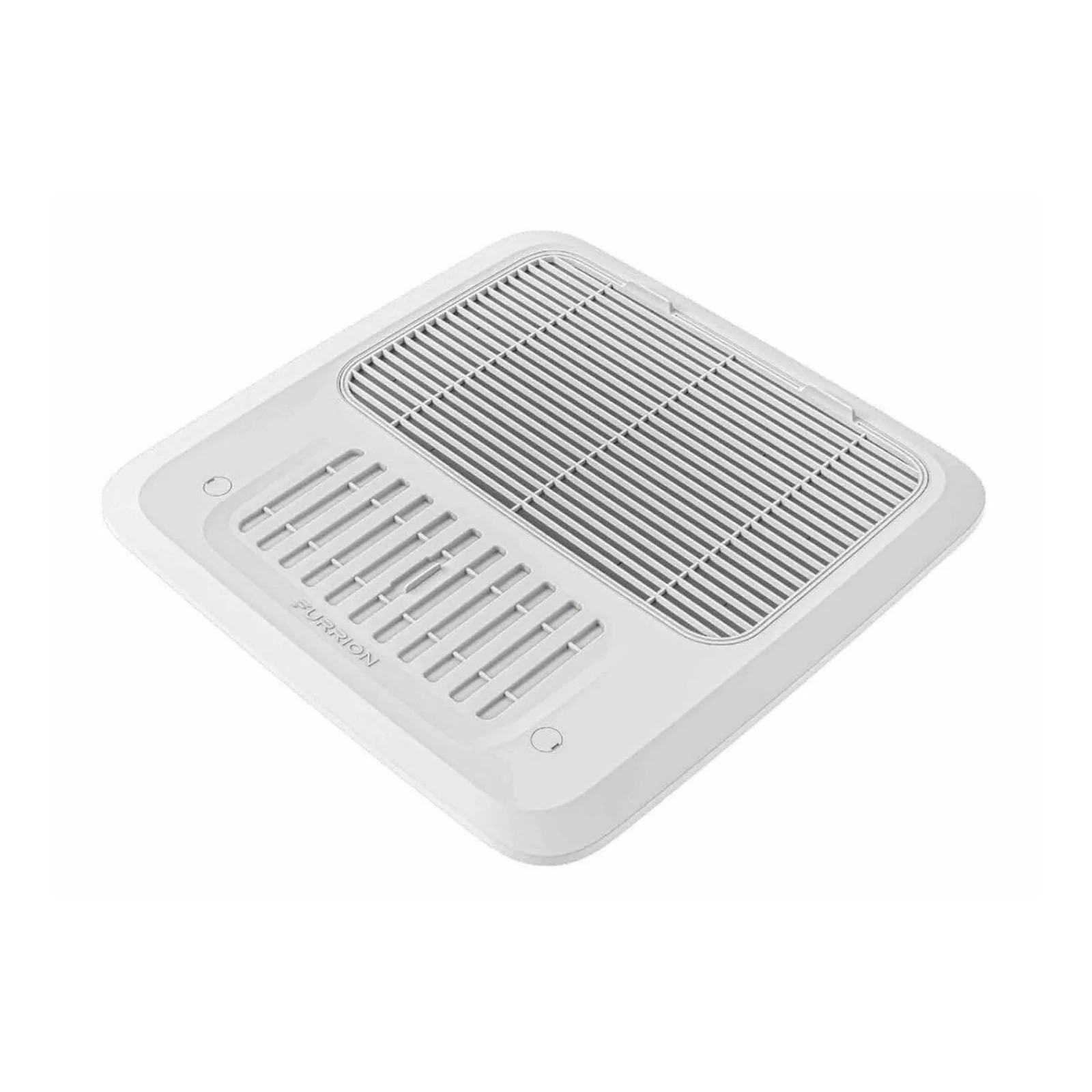

• Ceiling assembly compatibility
• Electrical requirements
• Thermostat and control box compatibility
• Mounting system and gasket design

Verifying compatibility beyond roof opening size is still important when replacing a rooftop unit.

Modern RV HVAC systems often use specific communication methods between thermostats, controllers, and rooftop units. Even thermostats that appear identical may not communicate properly with newer equipment.

Compatibility issues may occur due to:

• Different control box communication systems
• R32 vs R410A systems
• Single zone vs multi-zone compatibility
• Smart or digitally controlled systems
• Proprietary manufacturer designs

In many newer systems, the thermostat functions more like a communication device rather than a simple on/off switch. Because of this, replacing a rooftop unit may also require replacing the thermostat and control box.

Many older RV HVAC systems were far simpler compared to newer systems, and they also tend to requrie fewer communication dependent components. Modern systems increasingly rely on digitally connected controls, smart features, and manufacturer specific compatibility requirements.

Today's systems may include:

• Digital communication between components
• Smart thermostat functionality
• Multi-zone control systems
• Advanced controller logic
• Variable-speed compressor technology
• Refrigeration specific compatibility requirements

As systems become more advanced and provide more features, compatibility between components often becomes more important. This added complexity can improve comfort, efficienct, and functionality, but it also means that replacements are not always as simple as swapping one component for another.

Sometimes, but compatibility must be verified carefully.

Ducted and non-ducted systems are designed to move air differently, and certain components may only support one or the other. Other components are designed to be compatible with either system. At RVPS, we always make sure to note ducted or non-ducted compatiblity on each product page. This designation can be found in the product title, description, and / or under the "more information" tab. If you are unsure or are unable to locate this information, feel free to reach out to us through our contact page for guidance.

Several factors can affect power usage beyond the advertised running wattage.

One of the biggest factors is startup surge power. Many traditional fixed speed units briefly draw significantly more power during startup than during normal operation.

Additional factors may include:

• High outdoor temperatures
• Poor insulation
• Direct sunlight exposure
• Generator limitations
• Simultaneous appliance usage
• Frequent compressor cycling

Variable-speed or inverter style systems tend to operate more efficiently by gradually adjusting output rather than repeatedly starting at full power.

Because power usage can vary so widely due to the factors listed above, the exact same unit may have widely varying electrical demands in different applications.

Yes, as long as the generator is compatible with the power demands of all appliances that will run simultaneously.

To succesfully run your rooftop unit on a generator, the following must be considered:

• Startup surge requirements
• Running wattage
• Other appliance loads
• Outdoor temperatures
• Compressor design
• Soft-start functions

Traditional fixed speed systems often create larger startup surges, while variable-speed systems are designed to operate more smoothly, which means they are typically more generator friendly.

Some experienced RV owners choose to install or replace rooftop units themselves, but installation complexity varies depending on the system.

Potential considerations include:

• Roof sealing and weather protection
• Electrical compatibility
• Thermostat and controller setup
• Ducted vs non-ducted configuration
• Unit weight and roof access
• Wiring experience

Improper installation may lead to roof leaks, electrical issues, reduced performance, or damage to the unit or the RV. Additionally, non-professional installation may result in a voided manufacturer warranty.

It is always important to check the manufacturer's installation requirements, especially for systems with advanced compatibility or installation requirements. Generally, having a new unit installed by a professional is the safer choice.

Modern RV HVAC systems often rely on multiple compatible components working together.

Replacing a rooftop unit may require replacing additional components due to:

• Upgraded refrigerant
• Switching to a different brand
• Moving from an older analog system to a newer digital system
• Changing between single zone and multi-zone systems
• Improved product safety
• Wiring changes
• Changing from an AC only model to a heat pump model
• Different connector types
• Etc.

While it can be frustrating to learn that you will need to replace more components than expected, newer systems provide improved comfort, efficiency, quieter operation, and expanded functionality compared to older designs.
