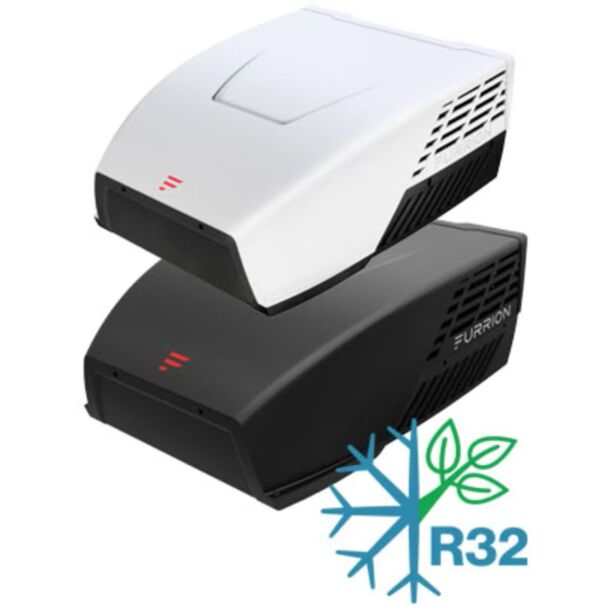

Furrion Chill HE 13.5K BTU Air Conditioner Complete Install | Ducted or Non-Ducted | Single or Multi-Zone | Black or White

Only %1 left
As low as $1,273.90

Take the guesswork out of upgrading your RV climate control system with the complete Furrion Chill HE 13,500 BTU BTU installation package. Just choose between a black or white rooftop unit and select the ducting/control option that matches your installation type! Each bundle includes all required components, including the rooftop unit, ceiling assembly (ADB), control box, and wall thermostat. You can also choose to add a heat strip separately.

The Furrion Chill HE combines high efficiency dual fan cooling, quiet operation, and road tested durability to provide reliable comfort wherever your travels take you!

Furrion Chill HE 13.5K BTU System

Take the frustration and guesswork out of upgrading your climate control system! This bundle pairs the Furrion Chill HE 13.5K air conditioner with all of the necessary compatible components for your selected installation and control type. Just choose a black or white rooftop unit, then select the appropriate ducting and control type!

The Chill HE is designed with an advanced dual fan system to move air more efficiently while reducing operating noise. The use of R32 refrigerant helps to reduce power consumption and environmental impact.


Choose Your Installation

Non-Ducted with Manual Controls

  • Simple controls straight from the ceiling assembly without a wall thermostat

Ducted or Non-Ducted, Single Zone

  • Controls one climate zone from a wall-mounted thermostat

Ducted, Multi-Zone

  • Controls multiple climate zones from a wall-mounted thermostat

System Features

High Efficiency

The Chill HE's dual fan system circulates air quickly and evenly throughout the living space with 13,500 BTUs of cooling power. This provides dependable comfort without unecessary energy use.

Quiet Operation

The dual fan design improves airflow while reducing operating noise when compared to traditional single fan systems for a more comfortable environment while relaxing or sleeping.

Flexible Installation

Furrion provides several installation configurations to allow you to choose the setup that best fits your RV layout and preferrered control style.

Durable Design

Furrion's innovative VibrationSmart technology helps the system withstand road vibrations and movement, while their ClimateSmart technology ensures consistent, reliable performance in a variety of outdoor conditions.

Optional Heating

All components support the installation of the Furrion Chill HE Heat Strip Kit (sold separately). Adding a heat strip provides supplemental warmth during milder temperatures to reduce reliance on a propane furnace. Please note, heat strips are not meant to entirely replace a furnace in temperatures below ~40°.


Specifications

Rooftop Unit

  • Warranty: 2 Year
  • BTUs: 13,500
  • Heat Pump: No
  • Ducting Type: Ducted or Non-Ducted
  • Refrigerant Type: R32
  • Electrical Rating: 115VAC, 60Hz, 1 Phase

Manual Control ADB

  • Warranty: 2 Year
  • Control Box: Separate
  • Ducting Type: Non-Ducted
  • Color: White
  • Heat Strip Ready: Yes

Electronic Control ADB

  • Warranty: 2 Year
  • Control Box: Separate
  • Ducting Type: Ducted or Non-Ducted
  • Color: White
  • Heat Strip Ready: Yes

Manual Controller

  • Warranty: 2 Year
  • Functions: AC/Heat Strip
  • Ducting Type: Ducted or Non-Ducted

Single Zone Controller

  • Warranty: 2 Year
  • Functions: AC/Heat Strip/Furnace
  • Ducting Type: Ducted or Non-Ducted

Multi-Zone Controller

  • Warranty: 2 Year
  • Functions: AC/Heat Strip/Furnace
  • Ducting Type: Ducted
  • Zones: Up to 4

Single Zone Wall Thermostat

  • Warranty: 2 Year
  • Display Type: LCD
  • Fan Control: 2 Fan Speeds plus Auto Fan
  • Functions: AC/Heat Strip/Furnace
  • Modes: Cool, Heat, Fan, Dry
  • Temperature Range: 60°F–86°F

Multi-Zone Wall Thermostat

  • Warranty: 2 Year
  • Ducting Type: Ducted
  • Display Type: LCD
  • Fan Control: Low, Medium, High, Auto
  • Modes: Auto, Cool, Heat, Fan, Dry
  • Zones: Up to 4

Heat Strip Kit

  • Warranty: 1 Year
  • Ducting Type: Ducted or Non-Ducted
  • Control Type: Electronic Controls
  • Heating Amps: 14.6
More Information

Specifications

Warranty2 Year
Ducting TypeEither Ducted or Non-Ducted
BTUs13,500
Heat PumpNo
