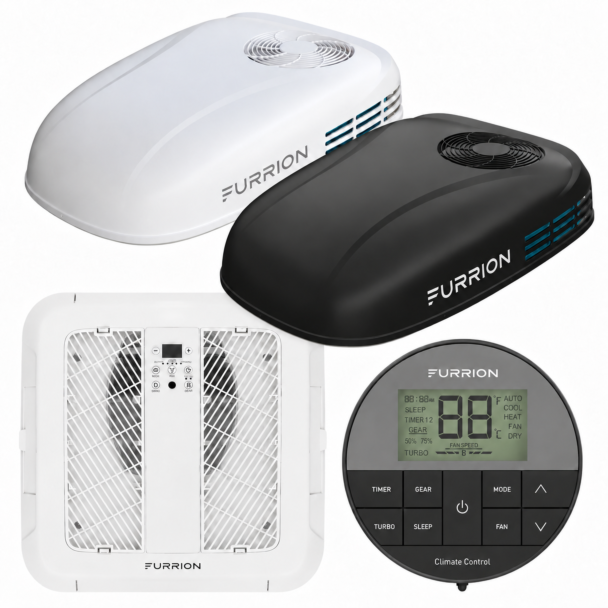

Furrion Chill Cube 15K Low-Profile Heat Pump Complete Install

Take the frustration and guesswork out of upgrading your climate control system! Just choose a black or white rooftop unit, then select whether to add the optional wall thermostat, and you'll receive all of the necessary components without any frustration or guesswork!

What's Included

• Furrion Chill Cube 15,000 BTU Low-Profile Rooftop Heat Pump
• Rooftop Mounting Frame Assembly and Duct Divider
• Furrion Chill Cube Ceiling Assembly with Handheld Remote
• Ceiling Assembly Foam Divider and Long Mounting Bolts
• Remote Mounting Bracket, Hardware, and Two AAA Batteries
• Wall Thermostat (when selected): Furrion Chill Cube Single Zone Wall Thermostat with Mounting Screws and Instruction Manual

Choose Your Controls

Without Wall Thermostat

Use the included handheld remote or touch-button controls on the ceiling assembly to operate your Chill Cube system. Both options provide access to temperature settings, fan speeds, operating modes, Gear, Turbo, Sleep, and Swing.

With Wall Thermostat

The optional wall thermostat adds convenient controls as well as additional system functions. Two programmable timer settings store a time, operating mode, temperature, and fan speed. It also adds the option of controlling your Chill Cube system and gas furnace from one place. A backlit digital display makes it easy to view temperature and mode settings.

System Features

Heating & Cooling

The Low-Profile Chill Cube delivers 15,000 BTUs of cooling, keeping you comfortable even on the hottest days. The built in heat pump provides supplemental heating, reducing furnace usage and conserving propane.

Variable Speed Compressors

Variable speed compressors allow the system to automatically adjust compressor speeds to match real time heating and cooling needs. Rather than repeatedly cycling on and off at full power, it gradually increases or reduces output as conditions change, reducing startup surges and overall power consumption.

Continuous operation helps maintain more consistent temperatures and improves humidity control, even when operating at lower speeds. Dual fan motors also reduce operating noise, creating a quieter and more peaceful environment.

Adjustable Airflow

Four adjustable outlets let you direct air to exactly where you need it most. The powered front and rear vents oscillate when the Swing function is active to help spread airflow more evenly throughout the living space, while the side vents can be adjusted manually for more direct airflow.

For ducted installations, Ducted Mode builds pressure in the ductwork to distribute air throughout the interior. When you need to cool down quickly, open the ceiling assembly vents to dump cool air directly into the cabin and reduce cooling loss as air travels through the ducts.

Multiple Operating Modes

• Cool: Cools the interior toward your selected temperature.
• Heat: Operates the rooftop heat pump, or a compatible furnace when the wall thermostat is installed.
• Fan: Circulates air without heating or cooling.
• Auto: Adjusts operation according to indoor conditions and system settings.
• Dry: Helps remove excess moisture while providing some cooling.
• Sleep: Adjusts temperature settings overnight while maintaining low fan operation for even quieter operation.
• Turbo: Provides increased airflow to cool a hot interior more quickly.
• Gear: Limits operation to 50% or 75% when full output isn't needed or power is limited.

Generator & Inverter Ready

The Chill Cube system is designed to operate with a compatible 2000W generator or inverter. Gradual compressor startup reduces the sudden increase in power demand common in traditional fixed speed units, and Gear Mode gives you the option of limiting power usage to 50% or 75%.

Durable, Low-Profile Design

The low-profile design provides more overhead clearance and reduces wind resistance. Furrion's VibrationSmart technology helps protect against road vibration, and ClimateSmart technology ensures optimal performance through changing conditions. The unit also includes an overload protection switch to prevent overheating.
