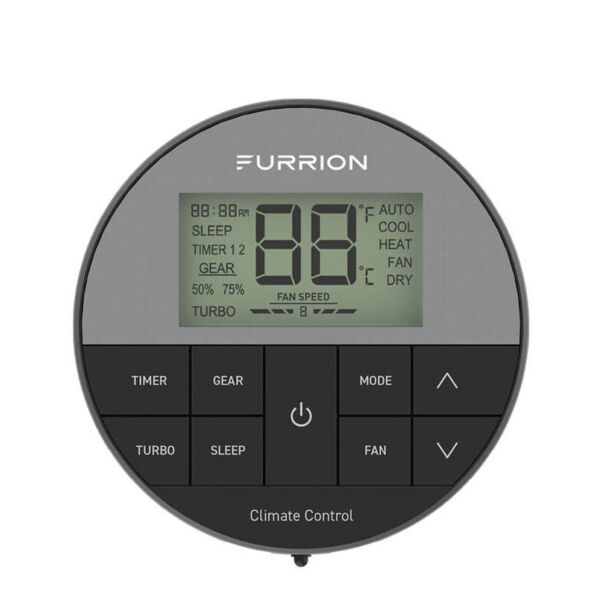

Furrion Chill Cube Single Zone Wall Thermostat

Control your comfort from one convenient location with the Furrion Chill Cube Single Zone Wall Thermostat! This optional thermostat adds compatible gas furnace control to your Chill Cube setup, along with two programmable timer settings and easy-to-reach wall-mounted controls.

This thermostat is designed specifically for 13.5K variable speed and 15K low-profile Chill Cube systems and is compatible with both ducted and non-ducted installations.

Control Your Air Conditioner & Furnace

The Chill Cube remote included with the ceiling assembly handles your rooftop unit settings, but the thermostat adds the option of controlling your gas furnace as well. With the appropriate furnace connections and configuration, you can adjust your Chill Cube and furnace settings from the same location.

The thermostat also supports cooling, heat pump, and heat strip controls for rooftop unit. Heating options are enabled during installation to match the equipment in your RV, and only one heating device can operate at a time.

Two Programmable Timer Settings

The handheld remote provides scheduled startup and shutdown functions, while the wall thermostat offers two saved timer programs. TIMER 1 and TIMER 2 each store a time, operating mode, temperature, and fan speed, allowing you to schedule two sets of timed operating preferences.

Convenient Wall-Mounted Operation

Keep your controls in one easy-to-reach location! This thermostat lets you adjust the system without reaching for the handheld remote or aiming it at the ceiling assembly. It also eliminates the need to replace batteries in the wall control.

A backlit digital display shows temperature, operating mode, fan speed, and Gear settings. It also includes a built-in room-temperature sensor as well as the option to choose either Celsius or Fahrenheit readings.

Multiple Operating Modes

The wall thermostat also provides access to the familiar Chill Cube operating functions:

• Cool Mode: Runs the air conditioner to cool the interior toward your selected temperature.
• Heat Mode: Operates an enabled, compatible heating device, such as a connected gas furnace or the rooftop unit's heat pump. Available heating functions depend on the equipment installed and the thermostat configuration.
• Fan Mode: Circulates room air without providing cooling or heating.
• Auto Mode: Allows the system to select the appropriate operation based on indoor conditions and system settings.
• Dry Mode: Helps remove moisture from the air while providing some cooling. Fan speed remains low and cannot be adjusted.
• Sleep Mode: Adjusts temperature settings for overnight comfort while keeping fan operation at low speed.

Adjustable Airflow

Choose Low, Medium, or High fan speed to match your comfort needs. Automatic fan operation adjusts airflow according to the difference between room temperature and your selected setting, while Turbo provides increased airflow to quickly cool down a hot interior.

Gear Mode

When full output isn't needed, Gear Mode lets you limit system operation to 75% or 50%. This gives you more control over power usage while maintaining a comfortable interior.

Installation

The thermostat uses a wired 12V DC connection. For proper temperature sensing, Furrion recommends mounting it on an interior wall approximately five feet above the floor in an area with good air circulation. Avoid direct sunlight, supply vents, and nearby heat sources.

What's Included

• Furrion Chill Cube Single Zone Wall Thermostat
• Two #8 Self-Threading Mounting Screws
• Instruction Manual
